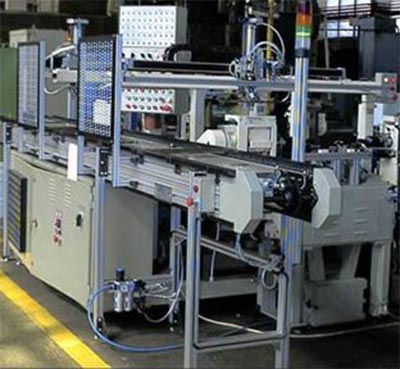

MSCS - Special equipment for cleaning and chamfering Special Equipment for Machining and Welding

MSCS is a specialized equipment that makes technologicaloperations for cleaning and chamfering for the differentcomponents, as intermediary phase for ElectricResistance Welding (ERW).

Working cycle - semi-automatic
Spindle speed 800 ... 1000 rpm
Storage capacity for loading and unloading stations - 50 pc
Power requirement 2.4 kW
Operating pressure 4 - 6 bar
Welding Generator 220 V; 50 Hz; 15 A
Dimensions (L x W x H) 4450x2450x1900 mm
Net weight 2400 kg
